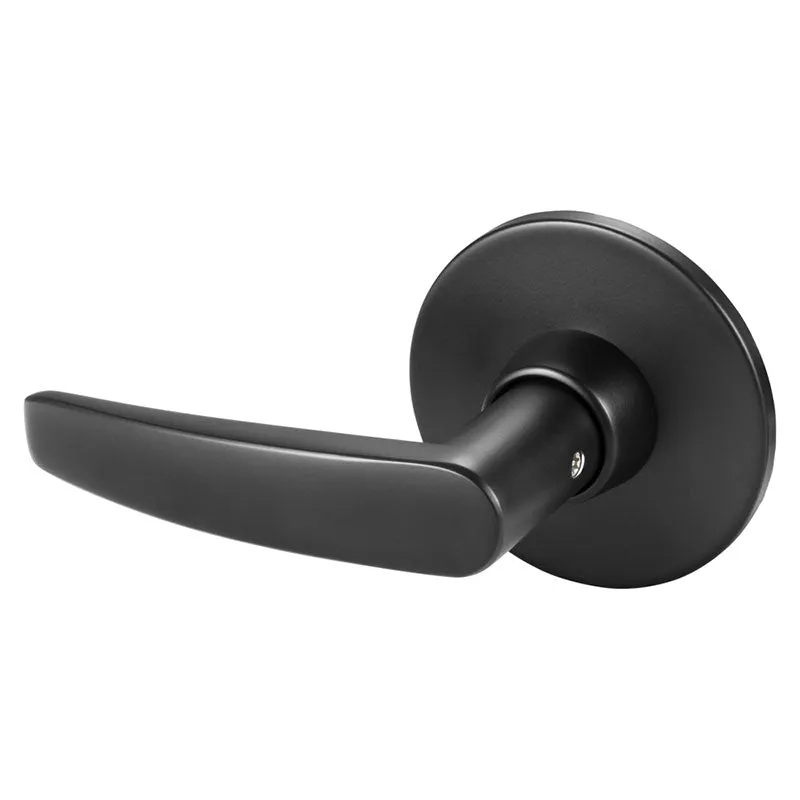

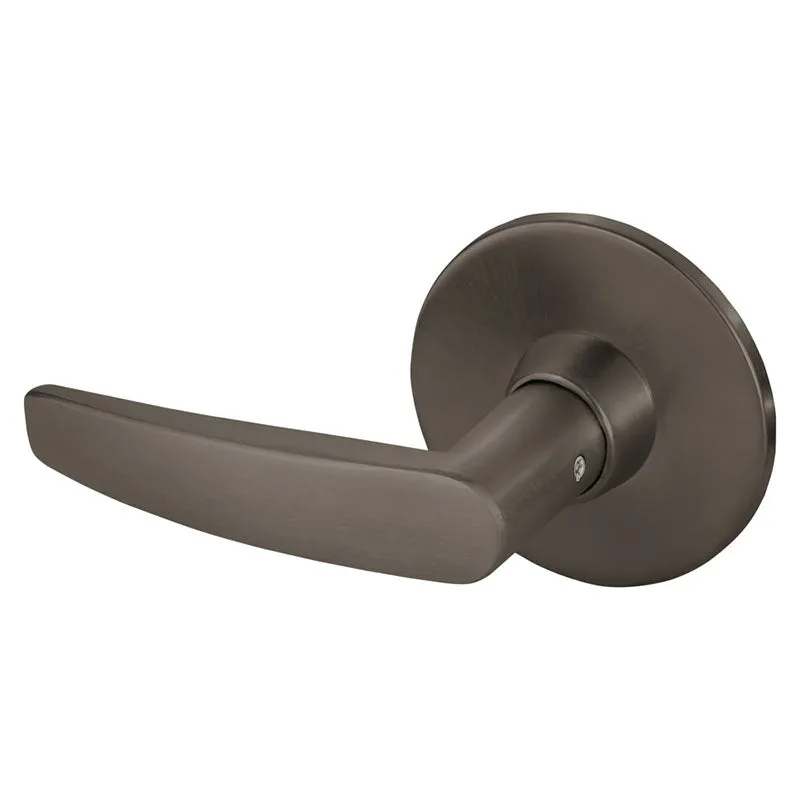

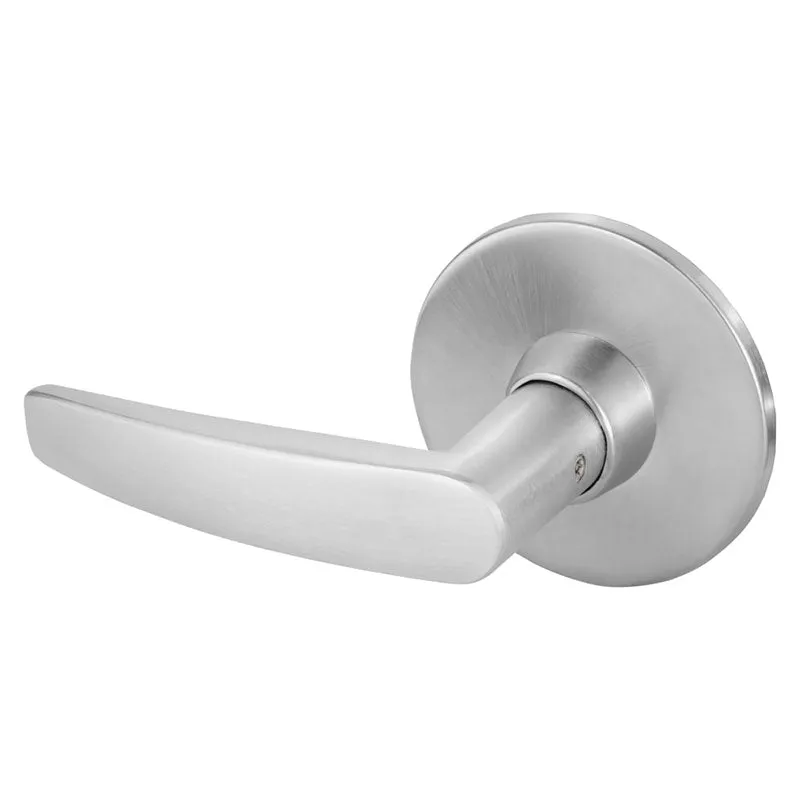

The Sargent 11U93-LB Is a Grade 1 Commercial Lever Door Single Dummy Handle. It comes with an L Rose, B Lever Design and is ideal For Use In Institutions, schools, Office Spaces, Healthcare Facilities, and Areas That Require A Grade 1 cylindrical lock.
11-Line T-Zone Bored Lever Locks
sets a higher standard for Grade 1 bored-in locks.
The unique T-Zone® construction provides unequaled strength and durability for the most demanding applications such as schools and hospitals.
- 18 functions available, including Classroom Security; many functions are field changeable requiring no additional parts
- Integrates into most existing facility’s key systems – accepts SARGENT key systems including patented Degree® and Signature; also accepts Best® SFIC and Schlage® and Medeco® LFIC
- Retrofits any standard cylindrical lock door prep and is non-handed
- Simple cylinder removal provides easy change-outs
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- Available in 13 architectural-grade finishes and Microshield® antimicrobial coating
- 10 year limited warranty
Product Specs
| Manufacturer | Sargent |
| SKU | 11U93 LB |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specs
| Function |
93 Single Lever Pull
|
| Function Family | Dummy |
| Lever/Knob Design |
B Lever
|
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
L Rose
|
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed
|
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
